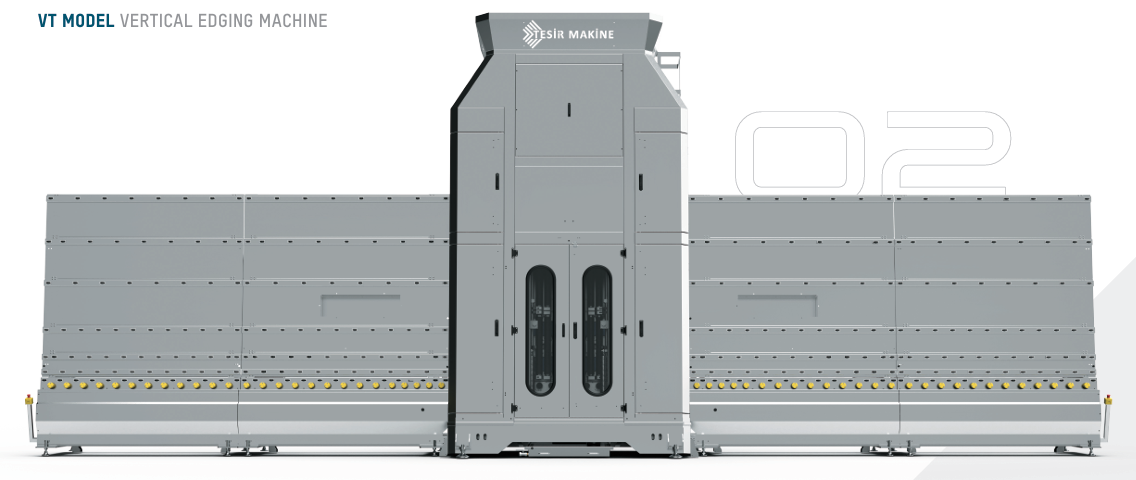

VT MODEL

Vertical VT Model is a compact vertical automatic seaming, grinding and polishing center esigned for innovative vertical processing. Engineered to meet the demands of those seeking a versatile machine, it efficiently processes both flat and spahed glass for tasks like seaming, grinding and polishing. This solution benefits both standalone operations and large scale actories looking to enhance their production technology with a modest investment, enabling fast and adaptable vertical production, whether used independently or integrated with IG lines.


TECHNICAL SPECIFICATIONS

Min. Glass Thickness: 3 mm
Max. Glass Thickness: 19 mm
Min. Glass Height: 300 mm
Max. Glass Height: 2500 – 2800 – 3300 mm
Min. Glass Length: 800 mm
Max. Glass Length: 4000 – 6000 mm
Energy Supply: 39 kW
Weight: 6500 kg
Spindle RPM: 3500



ADVANTAGES

  • Shaped Glass Processing
  • Grinding, Arrising, Polishing
  • Tool Changing with Holder
  • Milling, Countersinking
  • Automatic Thickness & Size Detection
  • Low-E & Coated Glass Processing
